Primary Design: JLMD

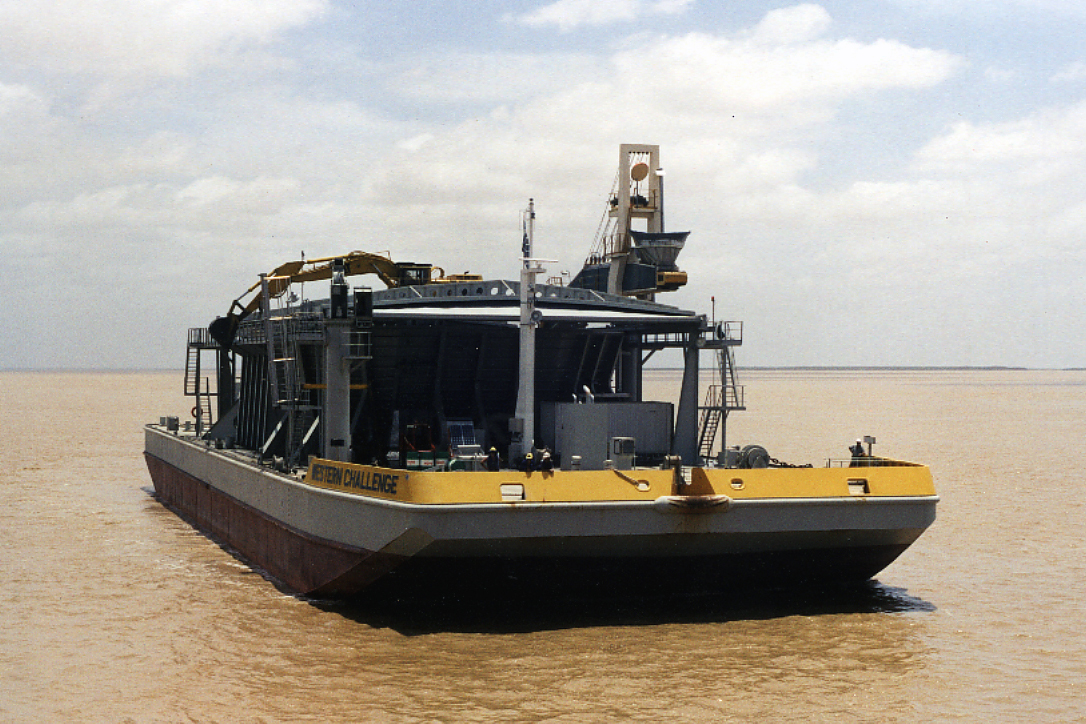

Name: Western Challenge
Length: 79.90 m
Breadth Mld: 24.0 m
Depth Mld: 5.50 m
Draft Loaded : 3.73 m
Cargo bin Capacity : 4500 tonnes
Survey : 2C (Partially Smooth Waters)
Class: ABS +A1 Barge, River Harbour and Sound Services
Material : Steel
Capacities:
– Cargo Bin : 2,182 m³
– Fuel Tank : 17,000 L
– Holding Tank (washdown) : 50,000 L
– Fresh Water : 10,000 L
– Water Ballast Capacity (4 tanks) : 1840 m³
